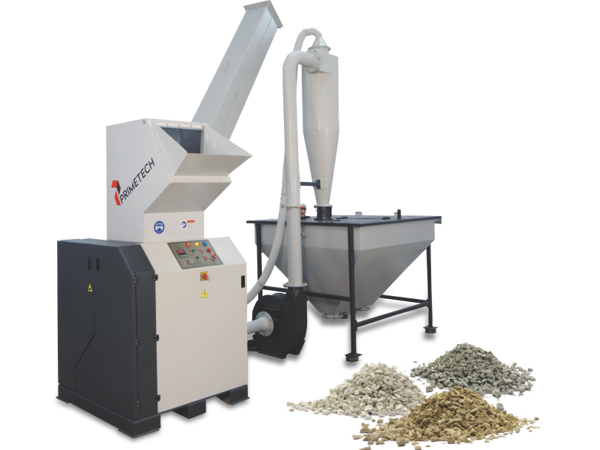

Granulators
The material is fed into the cutting chamber via a wide feeding chute. The size reduction takes place between the blades of the fast rotating rotor and the stationary housing blades. The particle size of the reduced material is determined by mesh size of the easily exchangeable screen installed at the bottom of the housing. Vertical bottom discharge.
Advantages and Features
- Reliable, compact, efficient and robust design
- Low feeding height, large feed opening
- Slant cut rotors for highest efficiency
- Different sizes available
- Pre-adjusted all-steel rotor knives
- Easy accessibility of the cutting chamber allows easy and intensive cleaning and quick screen change
- Easy changing of knives
- Easy handling
- High throughput rates with low power requirements
Product Range
| Model | Motor (kw) | Output Capacity (kgs/hr) |
|---|---|---|
| PG-0542 | 3.7-5.5 | 50-100 |
| PG-1035 | 7.5-11 | 100-150 |
| PG-2550 | 18-22 | 200-300 |
| PG-4060 | 30-37 | 300-500 |
| PG-7570 | 55-75 | 600-1000 |
- Reliable, compact, efficient and robust design
- Low feeding height, large feed opening
- Slant cut rotors for highest efficiency
- Different sizes available
- Pre-adjusted all-steel rotor knives
- Easy accessibility of the cutting chamber allows easy and intensive cleaning and quick screen change
- Easy changing of knives
- Easy handling
- High throughput rates with low power requirements
| Model | Motor (kw) | Output Capacity (kg/hr) |
|---|---|---|
| PG-14 | 7.5-11 | 100-150 |
| PG-16 | 3.7-7.5 | 50-100 |
| PG-20 | 18-22 | 200-300 |
| PG-24 | 30-37 | 300-500 |
