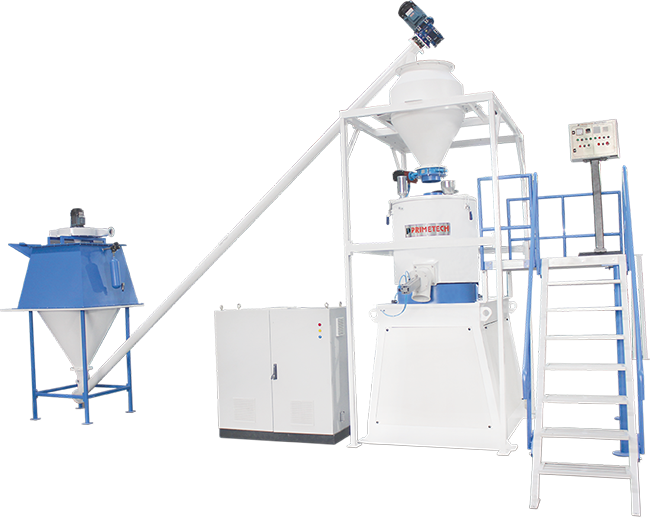

Screw Conveyor
A Screw Conveyor or Auger Conveyor is a mechanism that uses a rotating helical screw blade called "flight", usually within a tube to move liquid or granular material.
The reliable, yet simple and low maintenance Screw Conveyor uses a single moving part to effectively transfer dry material from one point to another.
The Screw Conveyor is being used in the dry processing industry for decades.
Applications
- Plastics and polymers
- Food and flour industry
- Minerals and metals
- Pharmaceuticals and Herbals
- Spices industry
- Refractories and abrasives
- Ceramics industry
- Starch and glucose
- Dairy industry
- Pesticides and insecticides
- Soaps and detergents
- Engineered for batch, intermittent and continuous conveying of free and non-free-flowing bulk materials.
- An economical solution for conveying powders, crystals, pellets, friable material, flakes, granules and much more.
- Convey horizontally or vertically. The flexible outer tubing and auger allow for easy maneuvering into elevated hoppers and bending around other equipment and obstacles.
- Simple, yet rugged construction keeps costs low, reliability high - A helicoid screw rotates inside a fixed tube.
- Fewer components minimize maintenance.
- The conveyor's standard stainless steel construction stands up to a continuous flow of abrasive materials.
- Convey materials over distances up to 80ft (24.4m) and discharge heights up to 40ft (12.2 m).
- Easy to clean - disassemble conveyor in 5 minutes for thorough wash downs.
- MATERIAL OF CONSTRUCTION : Mild Steel / Stainless Steel.
| Sr. No. | Model | PSC 46 | PSC 49 | PSC 412 | PSC 66 | PSC 69 | PSC 612 | PSC 86 | PSC 89 | PSC 812 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Motor | 3 Hp | 5 Hp | 7.5 Hp | 3 Hp | 5 Hp | 7.5 Hp | 5 Hp | 7.5 Hp | 10 Hp |
| 2 | Size | 4" | 4" | 4" | 6" | 6" | 6" | 8" | 8" | 8" |
| 3 | Length | 6m | 9m | 12m | 6m | 9m | 12m | 6m | 9m | 12m |
Also available in customised lengths.
