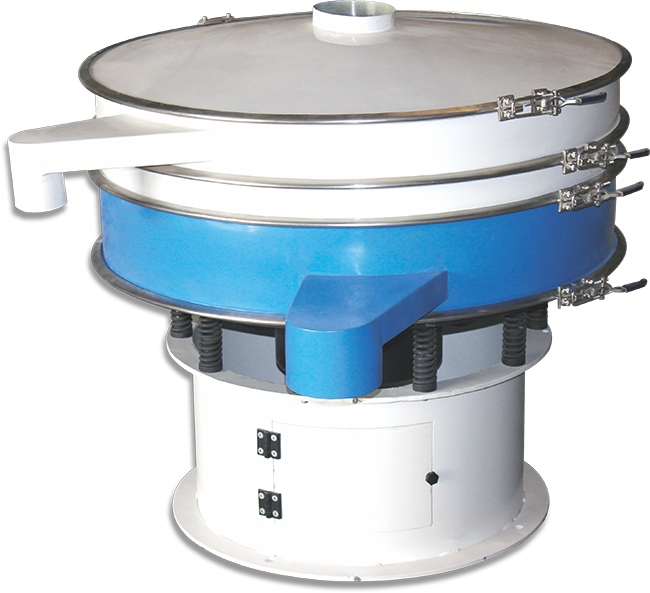

Gyro Vibrating Screen
Excellence in Sieving
These self-contained compact Gyro Vibrating Sieve separators make precise material separations according to particle size through efficient use of multi plane inertial vibration technique. These acts as most efficient screening machine for any dry and wet sieving application and are designed and built to solve the most difficult classifying and separating problems. Further, the 3 dimensional inertial vibration of this Gyro Vibratory Sieve separator is essentially based on a principle in which motor rotation induces vibration to an entire screen assembly in both vertical and horizontal planes.
Applications
- Plastics and Polymers
- Food and Flour Industry
- Minerals and Metals
- Pharmaceuticals and Herbal
- Spices Industry
- Refractories and Abrasives
- Speedy material separation with higher screening accuracy
- Fracture resistant structure against vibrations
- Specially designed motor for gyro motion
- Adjustable unbalanced load with marking for lead angle setting
- Available in single deck end multi deck
- Best in aesthetics.
- Also available in corrosion resistant stainless steel structure for food and pharma industry.
- Available in 8 mesh to 100 mesh.
- MATERIAL OF CONSTRUCTION: Mild Steel / Stainless Steel
| Sr. No. | Model | PGVS 30 | PGVS 39 | PGVS 48 | PGVS 60 |
|---|---|---|---|---|---|
| 1 | Motor | 0.75 hp | 1.0 hp | 1.5 hp | 2.0 hp |
| 2 | Screen Size | 30" | 39" | 48" | 60" |
- Plastics and Polymers
- Food and Flour Industry
- Minerals and Metals
- Pharmaceuticals and Herbals
- Spices Industry
- Refractories and Abrasives
- Ceramic Industry
- Starch and Glucose Industry
- Dairy Industry
- Pesticides and Insecticides Industry
- Soap and Detergent Industry
