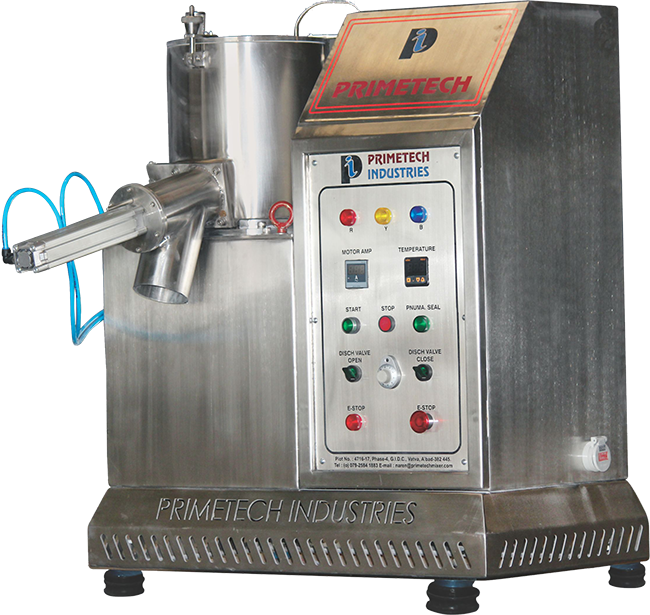

Lab Mixer
'Your Reliable Partner for MIXING TECHNOLOGY'
Excellence in Mixing Technology
- 3 Tier tool for intensive mixing
- Pneuma-seal for motor safety
- Tool speed control with VFD
- Hinge type easily openable discharge valve for faster cleaning
Product Key Attributes
- All important plant components (mixing vessels, mixing tools, electrical cabinets etc.) are manufactured in house, thus giving us a very tight control over the quality of our products.
- Robust construction.
- Only first-class electrical, electronic and pneumatic components, motors and gearboxes of reputed international brands are used in our products.
- Ideal mixing batch timings.
- User friendly operation.
- Prompt and efficient after-sales service.
- Jacketed Container of 15 Litre Vessel Capacity.
- Pneuma-seal technology to prevent powder Leakage.
- SS 304 supporting structure.
- Inbuilt electrical panel with plug and run system.
- Maintenance free machine.
- Superior aesthetics.
- Vessel inner surface, lid, valve plunger are made of SS 316 and are mirror polished.
- The mixing tool is driven by high torque AC motor controlled by AC variable frequency drive.
- Pneumatically operated discharge valve.
- Frictional heat efficiently prepares the best quality of dry blend.
- Optimum degree of dispersion.
- The control panel consists of programmable controls for optimum adaptability to the process requirements.
| Mixer Vessel Volume | Batch Capacity | Mixing Tool | Motor | Tool Speed | MoC. of Material Contact Parts | MoC. of Support Structure |
|---|---|---|---|---|---|---|
| 15 Litres | 3 kgs. to 5 Kgs. | 3 Tier or 4 Tier | 5 Hp (3-Ø 415V/50Hz, Tefc) | 900 rpm (Variable by Ac Vfd) | SS 316 Mirror Finish | SS 304 Matt Finish |
- PVC pipes and fittings industry
- PVC film, profile industry
- Polymers research laboratory
- Laboratories for plastic and polymer science institutes
- Masterbatch industry.
- R & D departments of polymer industry.
